DC24V Brushless Motor Boom Barrier Gate for Parking Entrance

Nombre De La Marca:	Ankuai Intelligent Tech Inc.
Número De Modelo:	El AKD102C
MOQ:	1 conjunto
Precio:	negotiable
Detalles Del Embalaje:	Envase regular con cartón
Condiciones De Pago:	T/t

Información detallada

Descripción de producto

Información detallada

Lugar de origen:

China

Certificación:

ISO9001, CE Certificate

Dimensión del gabinete:

344*283*1019

El motor:

Motor sin cepillo de DC24V

Potencia del motor:

100 W

Tarifa de la velocidad:

1.8 ~ 3s / 3s ~ 6s

longitud del arco:

Los 6M máximos

Color del gabinete:

Negro y gris

Temperatura de trabajo:

-30°C~80°C

Control remoto:

Máximo 30 m

Dirección:

BI-dirección

Tipo de proa:

Telescópico, Boom, Floding, etc.

Garantización:

Garantización de 1 año excepto para daños artificiales

Tiempo de entrega:

3 días hábiles para la muestra

Capacidad de la fuente:

30000 juegos por mes

Resaltar:

24V brushless boom barrier gate

DC24V parking entrance barrier

brushless motor boom gate

Descripción de producto

Integrative Machine Core Boom Barrier Gate with Brushless Motor for Parking Entrance Stable and Durable

Product Specifications

Attribute	Value
Cabinet Dimension	3442831019
Motor	DC24V Brushless motor
Motor Power	100W
Speed Rate	1.8~3s/3s~6s
Boom Length	Max 6m
Cabinet Color	Black and Grey
Working Temperature	-30°C~80°C
Remote Control	Maximum 30m
Direction	Bi-Direction
Boom Type	Telescopic, Boom, Floding, etc.
Warranty	1-year gurantee except for artificial damage
Delivery time	3 work days for sample

Product Features

Mechanical Features

Nice designed cabinet: strong, waterproof, can be used outside
Integrative machine core: all parts made by mold for accuracy and stability
60W turbine worm transmission deceleration induction motor with fan for continuous operation
Accurate link mechanism reduces boom shake and motor load
Manual boom lock/open capability when power is off

Electrical Features

High integrated level with powerful function
Shut-down and thermal protection functions
Intelligent limited sensor for automatic position checking
Anti-smash function
Adjustable open/close speeds
LED indicator for easy use and maintenance
Imported high-power MOSFET for contactless control
Photoelectric isolated protection circuit for signal stability
Supports standard remote control with 10 group capacity
Magnetic core transformer for damping situation performance

Safety Mechanisms

Auto bounce-back function for vehicle and facility protection
Pressure sensor triggers automatic boom opening upon obstacle contact
Loop detector prevents closing when vehicles are present
"Open first" logic regardless of current position
Plastic strips on boom reduce accident damage

Technical Parameters

Voltage	DC24V
Drive	DC brushless motor
Motor Power Consumption	100W
Cabinet Dimension	3442831019mm
Working Temperature	-30°C ~80°C
Humidity	≤90%
Boom Length	≤6m
Open/Close Time	1.8~3s/3~6s
The Height of Boom Support	890mm
Remote Control Distance	≤30m
IP	IP54
Input Interface	+12V relay signal or ≤100MS pulse signal
Remote Control Frequency	430.5MHz

Key Functions

Multiple Types of Arms

Boom-arm Type

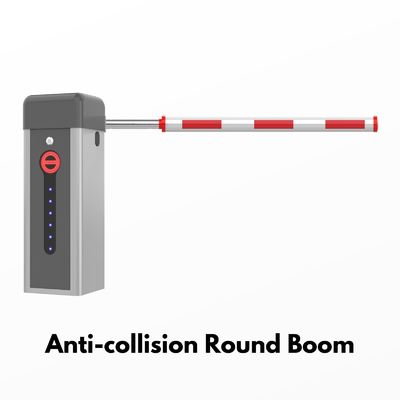

Straight-arm Type

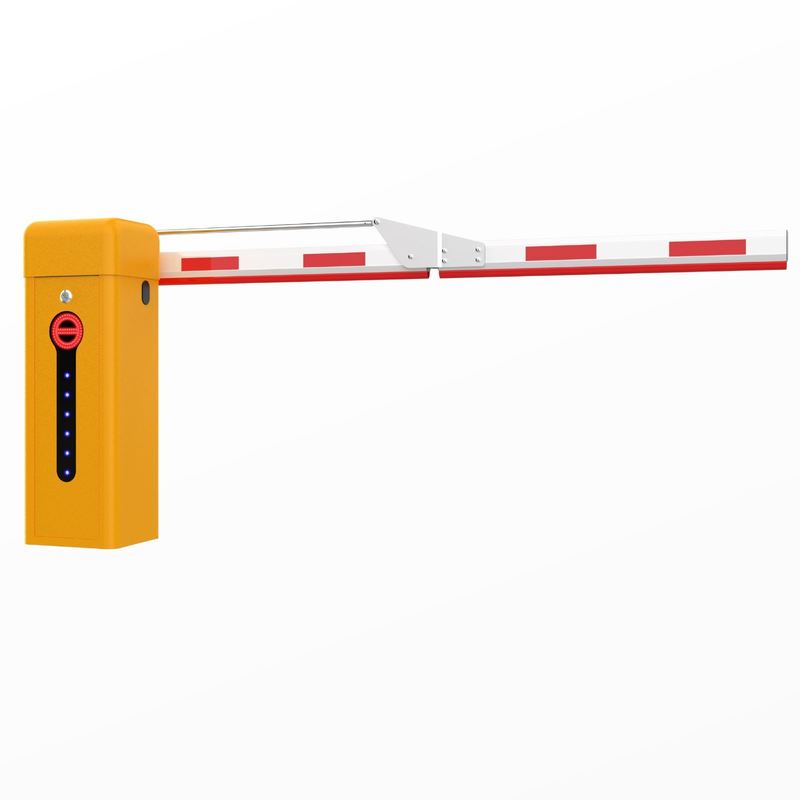

Folding-arm Type

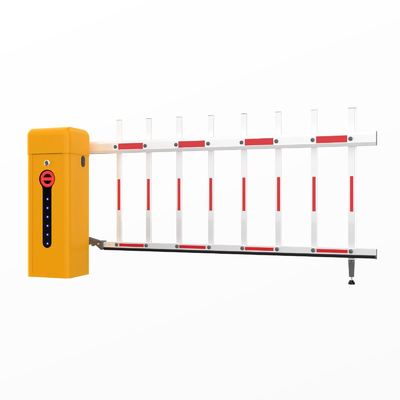

Fence-arm Type

Anti-crash Protection

Bounceback
Loop Detector
Open Priority
Rubber Strips Anti-crash Functions

Intelligent Limited Sensor

Limited sensor can check open & close position automatically, no need for manual adjustment.

Posmon Memory Function

The motor remembers limited position and returns to correct position automatically.

Environmental Adaptability

Suitable for outdoor installation
Waterproof grade IP54
Working temperature -30°C~80°C

Motor Performance

Strong motor provides powerful operation with 5 million open/close cycle capacity.

Applications

Office building
Bank
Wholesales center
Pavilion
Residential
Toll
Company entrance
Factory

About Ankuai Intelligent Tech Inc.

Ankuai Intelligent Tech Inc. is a Top Manufacturer in China, focusing on R&D, producing and selling various categories of parking barrier gates, turnstiles, speed gates, advertising barrier gates, bollards, etc. Our company has over a 50,000 square meters plant with more than 2,000 staff, and an advanced machine and automatic production line.

Company Journey

2010- Shenzhen AnKuai Intelligent Tech Ltd. First established
2011- Break through the market first accomplishment 3,000 meters square factory & 10 million sale
2013- Factory enlarged to 6,000 meters square 50 million sales
2014- Marching on Overseas market with domestic and international hot sale products
2015- Company relocated to Guangdong, China, 26,000m² area
2017- First 6M Heavy Advertising Barrier in the Security & Protection Field
2019- Sales exceeded over 60 million dollars

Frequently Asked Questions

What is your company's strength in this field?

We are one of the greatest head leaders in this field. We are an ISO-approved factory with over 50,000 square meters, 130+ national patents, strong R&D team with 30+ professionals, and over 300 assembly workers. We have 76 distributors in China and over 50 worldwide.

How do you guarantee the quality of your product?

We have ISO9001 and CE certificates. We commit to providing the best product quality possible to our customers.

Do you provide OEM service?

Yes, we offer OEM services including custom barrier gates, logo printing, and customized packaging.

What is the lead time for standard items?

1-50 sets: 5 working days; 50-100 sets: 7 working days; 100-500sets: 15 working days. Custom items may require 3-10 additional working days.

What warranty and after-sales service do you provide?

We offer 1-year quality guarantee. Our team provides timely assistance with all inquiries within 24 hours, along with product guidance and support.
