Automatic Flap Barrier Turnstile with 0.8s Arm Open/Close Time 40~60 ppl/min Passing Speed and Brushless Motor

Nombre De La Marca:	ANKUAI
Número De Modelo:	El AKT317
MOQ:	1
Precio:	$643-690

Información detallada

Descripción de producto

Información detallada

Lugar de origen:

Cantón, China

Control de acceso:

Sistema ESD, Reconocimiento facial, Huella digital, Tarjeta IC, Código QR, Tarjeta RFID

Tiempo de apertura de la barrera:

0,2 s, 0,4 s, 0,6 s, 0,8 s, 1 s

Interfaz de comunicación:

RS485, TTL232

Dirección de funcionamiento:

De 2 vías

motor de barrera:

Motor sin escobillas

Material:

Acero inoxidable

Consumo de energía:

DC24V 40W

Velocidad de paso:

30-45 personas/min

Ancho de pase:

≤600 mm

Longitud del brazo:

≤500 mm

Temperatura de trabajo:

-25 a 75 ℃

Pares infrarrojos:

8 pares

Interfaz de entrada:

Señal de la retransmisión

Fuente de alimentación:

110V/220V±10, 50/60Hz

Dimensiones:

Se aplicará el método de ensayo de la muestra.

Resaltar:

0.8s Arm Open/Close Time Flap Barrier Turnstile

40~60 ppl/min Passing Speed Automatic Flap Barrier

Brushless Motor Flap Turnstile Gate

Descripción de producto

School Flap Turnstile Gate Automatic Entrance Control System

High-performance flap barrier gate designed for university libraries and educational institutions, featuring RFID card and face recognition access control.

Technical Specifications

Dimension	1500300980mm (LWH)
Power Consumption	24V BLDC 40W
Passage Width	≤600mm
Arm Length	≤500mm
Arm Open/Close Time	0.8s
Power Supply	110V/220V±10, 50/60Hz
Working Temperature	-25 〜 75 ℃
Passing Speed	30〜45 Persons/min
Arm Turning	Bi-direction
Infrared	8 Pairs
Working Environment	Indoors or outdoors with shed
Input Interface	Relay signal
Communication Interface	RS485, TTL232

Key Features

Auto-reposition function: Locks automatically if passengers don't pass within regulated time after card read
Bi-directional or uni-directional passing options
Automatic arm drop during power failure
Self-lock function: arm locks automatically after passenger passes
LED passing arrow indicates proper direction
Standard interfaces for easy connection with various readers
RS485 interfaces for direct computer connection
Quiet, stable operation with minimal noise

Advanced Functionalities

Dual anti-pinch function with brushless motor and advanced reduction gear
Programmable monitoring with LED status indicator
Multiple passage modes with intrusion and anti-reverse alarms
Auto-reset, anti-collision, and power-off open mode
Dynamic lighting system with arrow, logo, and ambient lights
Control board supports voice announcements
Versatile interfaces for facial recognition integration

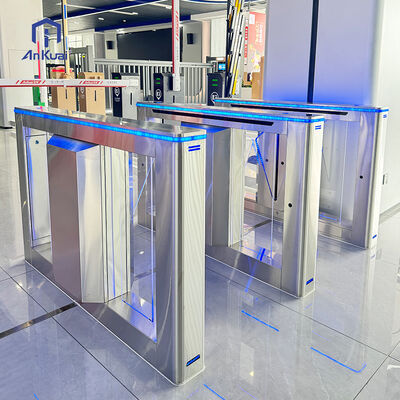

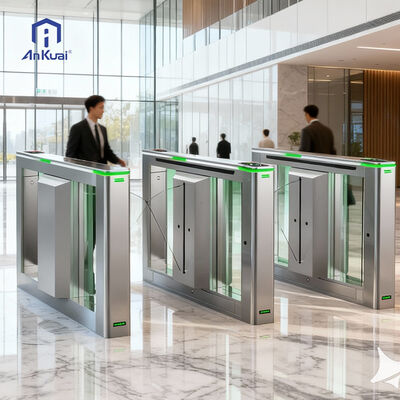

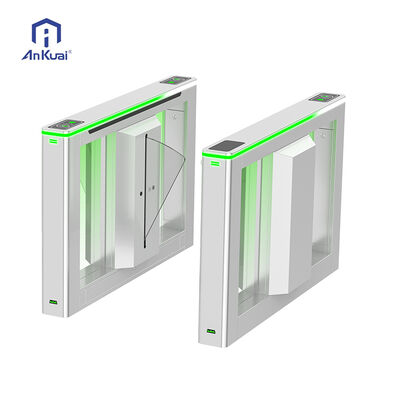

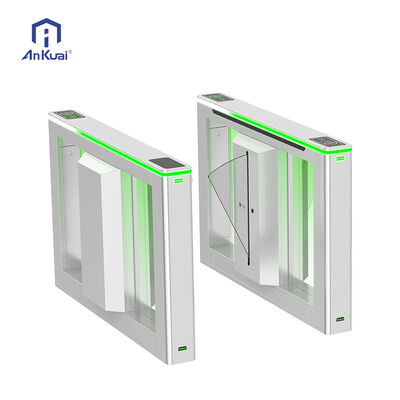

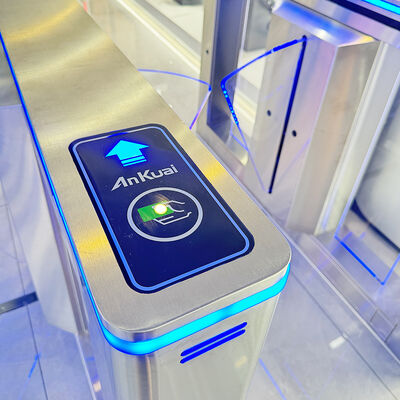

Product Gallery

Manufacturer Profile

Guangdong Ankuai Intelligent Technology Co., Ltd.

Founded in 2010, specializing in production and sales of road gates, advertising road gates, license plate recognition systems, channel gates, pedestrian channel advertising doors, industrial doors and intelligent parking lot management systems.

Company Statistics

National Patents: 200+

Area: 26,000 Square Meters

Processing and Assembly Workshop: 50,000 Square Meters

Employees: 450+

R&D Team: 50 members

Monthly Production Capacity: 30,000 Units

Competitive Advantages

Market Position: Focused expertise in turnstiles, barrier gates and face recognition systems
Global Reach: Serving customers in over 170 countries
Complete Solutions: Single-source provider for entire projects
Simplified Design: Mold development for easy installation and maintenance
Innovation: Holder of more than 130 patents
Experience: Service teams with 15+ years industry experience
Responsive Service: 3-minute response, 3-hour solution proposal, 3-day problem resolution

Frequently Asked Questions

What is your company's strength in this field?

We are one of the industry leaders with over 26,000 square meters of facilities, 130+ national patents, 450+ employees including a 50-member R&D team.

How about the quality of your products?

We use German, Japanese and Chinese lead brand accessories to ensure quality. Our factory implements 5S management to control production processes.

Do you provide OEM service?

Yes, we can customize barrier gates according to your needs, print your logo, and customize retail packaging.

What is your lead time for standard items?

1-50 sets: 5-10 working days; 50-100 sets: 7 working days; 100-500 sets: 15 working days. Custom items require 3-10 additional working days.

Do you provide quality guarantee/warranty and after-sale service?

We offer one-year guarantee with lifetime technology support.

What are your after-sale services?

We provide lifetime technology support via online channels, emails, video, and phone. Our English-speaking engineers ensure direct communication.
